Standalone Firmware Connection & Setup Guide
Accessing the Yardian Pro in Standalone Mode
4 Connection Modes
Mobile Direct Mode (WiFi AP Mode)

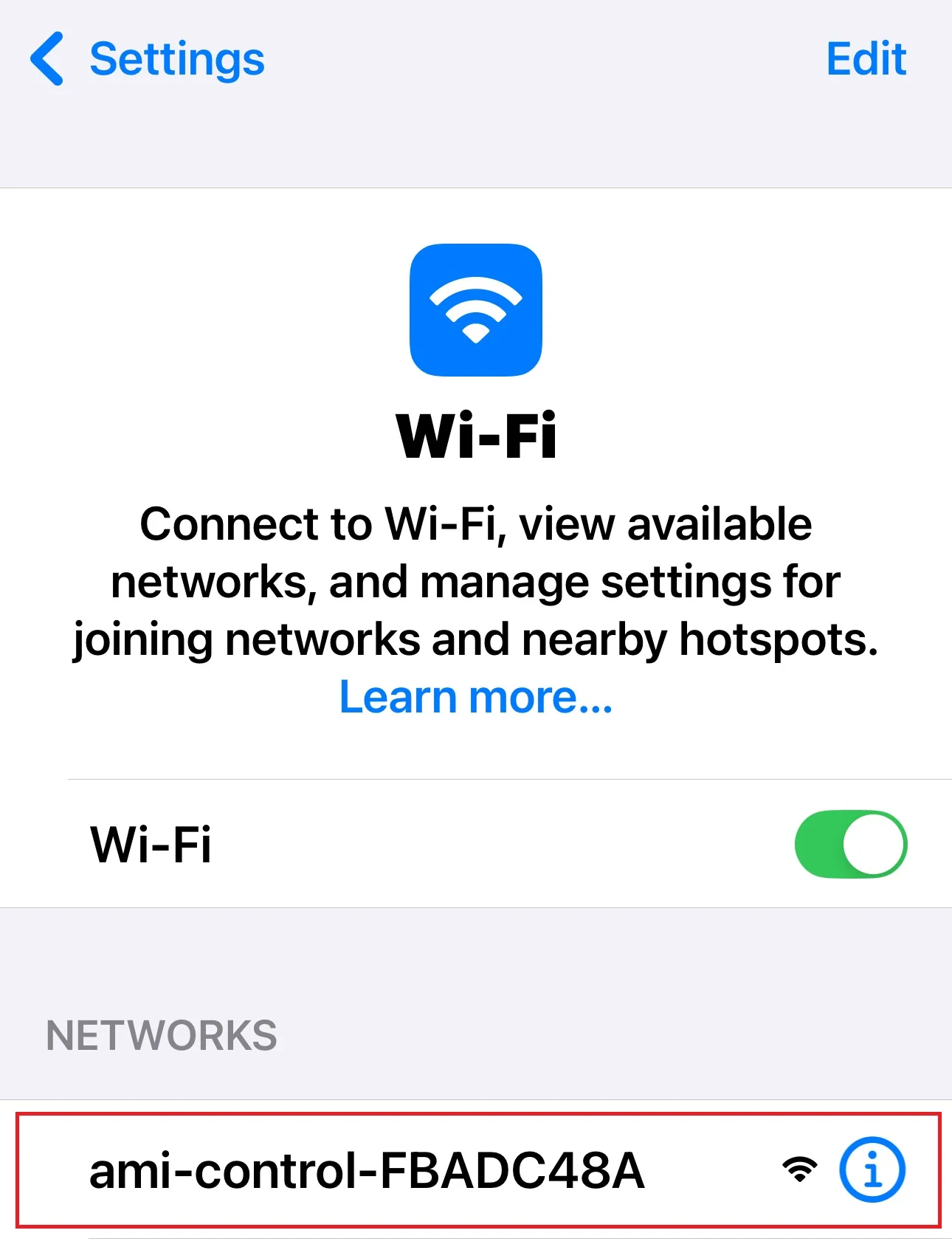

Use this mode when there is no local Wi-Fi or internet available at the installation site. In this mode, your cellphone connects directly to the controller’s SSID. You can then use your mobile browser to access the web interface for full configuration and control. The main LED will be blinking blue and green.
Local Network Mode (LAN)

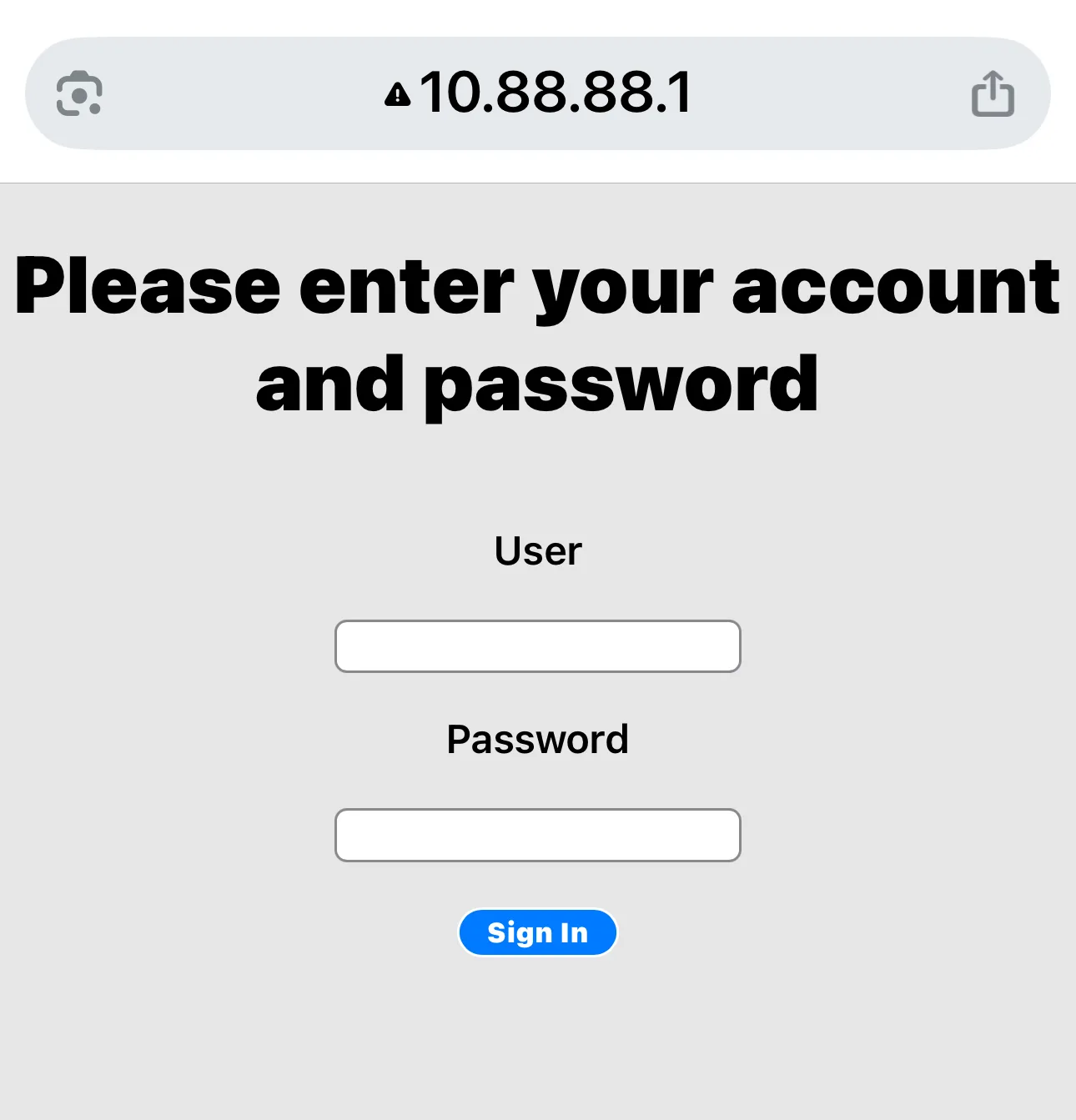

When a local network (router) is available. You can access the controller’s web interface by entering its IP address into a browser on your smartphone or computer for full configuration and control. The main LED will stay solid white.
Wired Internet Mode (Ethernet)

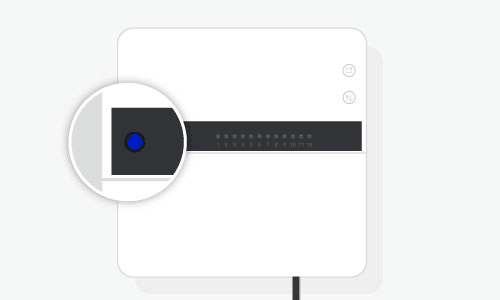

Use this mode when an internet connection is available, and you require the most stable network signal. While the controller is in Mobile Direct Mode (Wi-Fi AP Mode), simply connect it to a router via an Ethernet cable. The system will automatically detect the network and establish an internet connection. LED Indicator: Once connected, the main LED will turn solid blue.
Wireless Internet Mode (Wi-Fi)

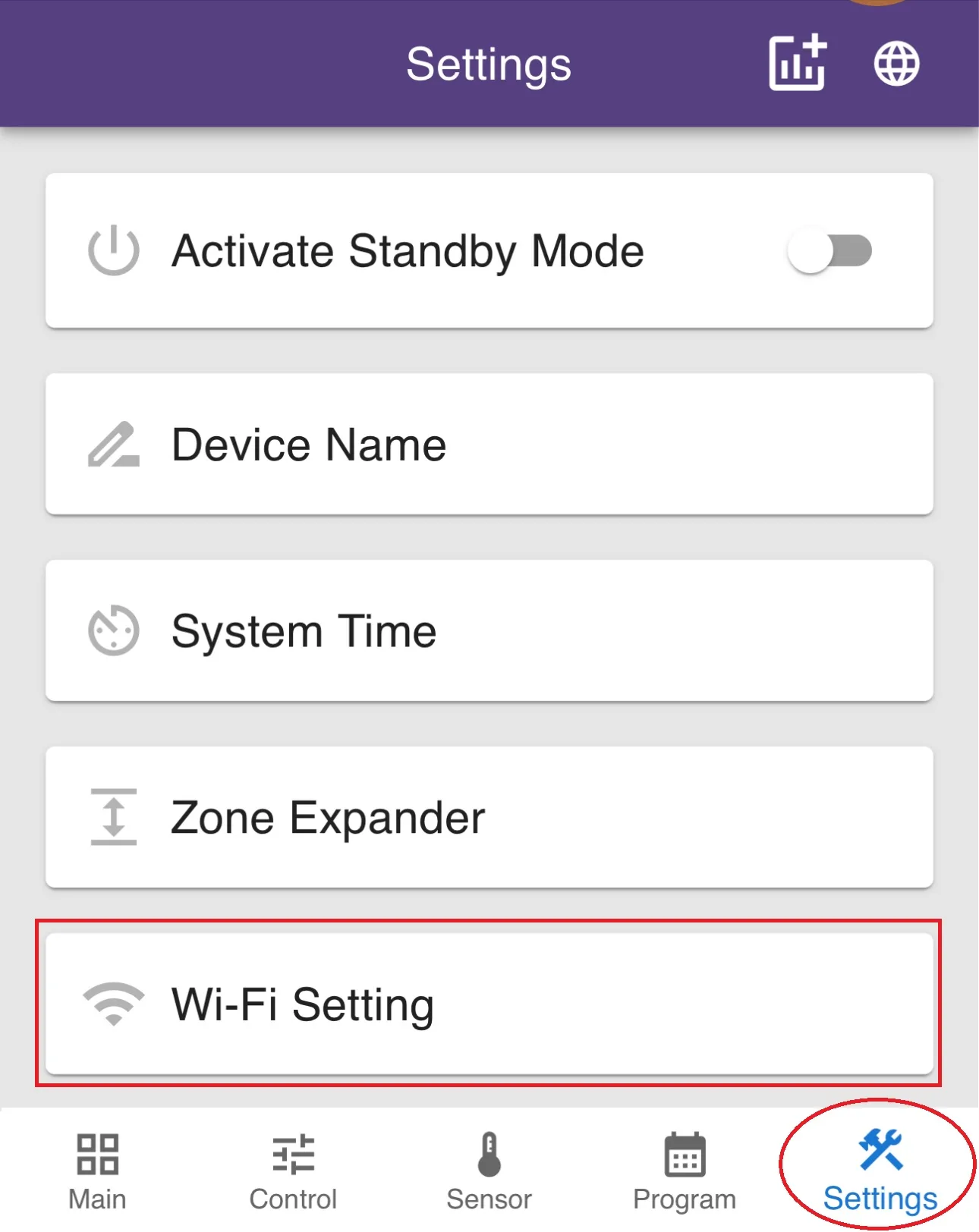

Use this mode when an internet connection is available, but running a physical cable is not convenient. While in Mobile Direct Mode, simply enter your local Wi-Fi SSID (Network Name) and Password through the web interface. The controller will then switch to wireless mode to connect to the network. Once connected, the main LED will turn solid green.
